What are Photoelectric Sensors?

We are a Photoelectric Sensors Diffuse Reflective Suppliers, Distributors & Importers in Mumbai, India. Carlo Gavazzi Photoelectric Sensors are devices that detect changes in surface conditions, objects, or colors and categorize them using light. They also operate by transmitting a light beam and measuring the reflection of cuts as well as how much this has been blocked when another object stands in its way. Because these sensors can detect an object without even touching it, they are one of a very commonly used category which is further widely applied in automation and manufacturing. Perfect for high-speed and precision counting, positioning to locate parts, or detecting part presence.

Photoelectric Sensors Diffuse Reflective

Product Overview:

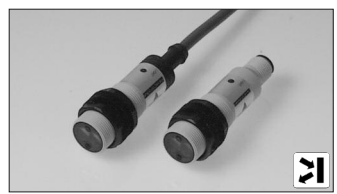

The PA18CSD. family provides low-cost, general-purpose Diffuse-reflective sensors in 18 mm diameter industrial cylindrical PBTP housing. They find applications in simple tasks where a basic sensor gives adequate sensing performance. The sensors are easy to use and require no adjustment except the 400 mm diffuse adjustable type. The output is a 4-wire complementary (NO and NC) output in NPN (current sinking) or PNP (current souring).

Product Description:

Fixed Sensing Distance Models:

100 mm: Models include PA18CSD01NA, PA18CSD01NAM1 (NPN/Cable or Plug) and PA18CSD01PA, PA18CSD01PAM1 (PNP/Cable or Plug).

200 mm: Models include PA18CSD02NA, PA18CSD02NAM1 (NPN/Cable or Plug) and PA18CSD02PA, PA18CSD02PAM1 (PNP/Cable or Plug).

400 mm: Models include PA18CSD04NA, PA18CSD04NAM1 (NPN/Cable or Plug) and PA18CSD04PA, PA18CSD04PAM1 (PNP/Cable or Plug).

Adjustable Sensing Distance Model:

400 mm adjustable: Models include PA18CSD04NASA, PA18CSD04NAM1SA (NPN/Cable or Plug) and PA18CSD04PASA, PA18CSD04PAM1SA (PNP/Cable or Plug).

Key Features of Carlo Gavazzi Photoelectric Sensor

  • Sensing Range: Adjustable from 400 mm or Optional fixed setting of either 100, 200, or up to a maximum of even class-leading long full-range sensing range (400mm)
  • Infrared Light: Uses infrared light (modulated) for detection accuracy.
  • Wide Supply Voltage: Supplied with a voltage range of 10-40 VDC.
  • Flexible Output Options: 200 mA NPN or PNP output.
  • Switching Functions: Switching Functions make & break switching with LED indication for easy status monitoring.
  • Robust Protection: Reverse polarity protection, short-circuit protection and transient protection add to its durability.
  • High Ambient Light Immunity: This sensor has been designed to work decently even in high ambient light conditions.
  • Versatile Connectivity: Both cable and plug versions are available to suit various installation needs.

Ordering Key for Carlo Gavazzi Photoelectric Sensor

  • Nominal operating range (Sn): 10 m using the ER4 reflector.
  • Type: The general type of the sensor.
  • Housing Style: The shape or style of the sensor's housing.
  • Housing Size: The dimensions or size of the housing.
  • Housing Material: The material the sensor housing is made of, adding to its durability and suitability for various environments
  • Housing Length: The length of the housing of the sensor; might affect installation and compatibility with other equipment.
  • Detection Type: The sensor is used to detect objects, such as through-beam, retro-reflective, or diffuse detection.
  • Sensing Range: The maximum distance the sensor can detect an object.
  • Output Type: The sensor uses NPN or PNP output.
  • Output Configuration: Configuration of the sensor's output, for instance, NO (normally open) or NC (normally closed).
  • Connection Type: The type of connection available, such as cable or plug.
  • Adjustable: The sensing range of the sensor is adjustable.

Technical Specifications

  • Rated Operating Distance (Sn):
    1. Adjustable: Up to 400 mm
    2. Fixed: 100, 200, or 400 mm
    3. Reference Target: Kodak test card R27, white, 90% reflectivity
      1. Size: Sn < 400 mm – 100 x 100 mm
      2. Sn ≥ 400 mm – 200 x 200 mm
  • Sensitivity: Adjustable via 270° turn potentiometer (adjustable models only)
  • Temperature Drift: 0.4%/K
  • Hysteresis (H): 3 to 20% (Differential travel)
  • Rated Operational Voltage: 10 to 40 VDC (ripple included)
  • Ripple (Urpp): Max. 10%
  • Output Current:
    1. Continuous: Max. 200 mA
    2. Short-time: 200 mA, max. load capacity 100 nF
  • No Load Supply Current (I0): Max. 20 mA
  • Min. Operational Current (In): 0.5 mA
  • OFF-State Current (Ir): Max. 100 µA
  • Voltage Drop (Ud): Max. 2.5 V @ 200 mA
  • Protection: Includes reverse polarity protection, short circuit protection, and transient protection.
  • Transient Voltage: Max. 1 kV/0.5 J
  • Light Source: GaAlAs LED, 880 nm
  • Light Type: Infrared, modulated synchronized
  • Sensing Angle: ± 25° at ½ range
  • Ambient Light: Max. 10,000 lux
  • Operating Frequency (f): 120 Hz, light/dark ratio 1:2
  • Response Time:
    1. OFF-ON (ton): < 3.2 ms
    2. ON-OFF (toff): < 5.5 ms
  • Power ON Delay (tv): Typ. 100 ms

Specification(cont)

  • Indication Function
    1. Output ON: Dark and light (complementary switch)
    2. LED Indicator: Yellow
  • Environment
    1. Overvoltage Category: III (IEC 60664/60664A; 60947-1)
    2. Pollution Degree: 3 (IEC 60664/60664A; 60947-1)
    3. Degree of Protection: IP 67 (IEC 60529; 60947-1)
  • Temperature
    1. Operating Temperature: -20°C to +60°C (-4°F to +140°F)
    2. Storage Temperature: -30°C to +70°C (-22°F to +158°F)
  • Vibration
    1. Vibration Resistance: 10 to 150 Hz, 0.5 mm/7.5 g (IEC 60068-2-6)
  • Shock
    1. Shock Resistance: 2 x 1 m & 18 x 100 x 0.5 m (IEC 60068-2-32)
  • Dielectric Voltage
    1. Vibration Resistance: 600 VAC (IEC 60365-4-41)
  • Housing Material
    1. Body: PBTB, grey thermoplastic polyester
    2. Front: Luran®, black polyester, reinforced nylon
    3. Cable End: Black
    4. Nuts: Reinforced nylon
  • Connection
    1. Cable: Grey, 2 m, 4 x 0.35 mm² oilproof PVC
    2. Plug: M12 x 1, cables for plug (M1), CON-1.... series
  • Weight
    1. Cable Version: 100 g
    2. Plug Version: 17 g
  • Approvals
    1. CE-Marking: Yes
    2. Certifications: UL, CSA

Benefits

  • Versatility in Applications: The Adjustable Sensing range as far as 400 mm allows this sensor to operate in several different environments and tasks, from object detection at various distances.
  • Reliability: : With its modulated infrared light source, the sensor is quite capable of carrying on with consistent performance even in challenging lighting conditions and offers high immunity to ambient light.
  • Durability:
    1. The sensor is housed in a robust PBTP thermoplastic polyester body with reinforced nylon, making it suitable for harsh industrial environments.
    2. It features protection against reverse polarity, short circuits, and transient voltages, enhancing its lifespan and reliability.
  • Ease of Use:
    1. Simple to install and use, the sensor comes in both cable and plug versions, making it adaptable to various setups without the need for complex adjustments.
    2. The LED indication provides clear feedback, simplifying diagnostics and operation monitoring.
  • Safety and Compliance:
    1. The sensor complies with international safety standards, including UL and CSA approvals, ensuring safe operation in various regions.

Applications

  • Object detection in automation systems.
  • Packaging lines and assembly processes.
  • General manufacturing applications where basic sensing is sufficient.

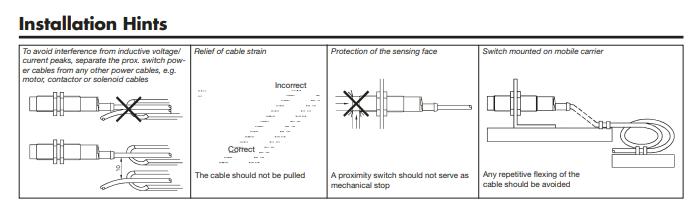

Installation Tips for CARLO GAVAZZI Photoelectric Sensors

  • Interference Prevention: Route sensor power cables separately from power cables to motors or solenoids. This reduces electrical interference.
  • Cable Strain Relief: Avoid pulling on the cables but instead apply proper strain relief to avoid damage.
  • Protect the Sensing Face: Do not use the sensor face as a mechanical stop to prevent damage.
  • Mounting on Mobile Carriers: Avoid repetitive flexing of cables to ensure long-term reliability.

Accessories

  • MB18A: Mounting brackets for easy installation.
  • Connector Type CON.1A-..: Compatible connectors for plug versions.
  • Adjustments: Screwdriver (77-000) for adjustable models.
  • APA18-RAR: Additional accessory for specific setups.
