What is a Color Mark Sensor?

We are Color Mark Sensors | TL50 Sensors Suppliers in Mumbai, India. The Mark Sensor, also known as a contrast sensor, is an advanced optical sensor whose design is planned for detecting the difference in contrast between a mark, including a printed registration mark, and the background. These sensors find their main applications in packaging, food processing, cosmetics, and pharmaceuticals, among other industries, where high-precision detection of marks or labels on moving items may be of paramount consideration.

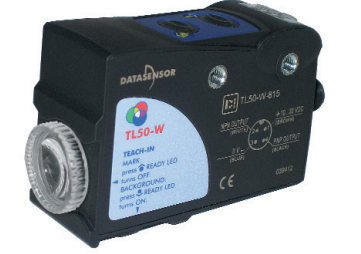

Color Mark Sensor

Types of Mark Sensors:

  • Photoelectric Sensors: Use a light source and a receiver to detect changes in light caused by the mark.
  • Contrast Sensors: Designed to detect subtle differences in colour or brightness between the mark and its background.

TL50 Series

The TL50 Series Mark Sensor is a prime example of this type of sensor. The TL50 Series Mark Sensor uses technology called RGB LED emission which provides very high resolution to detect the minutest of colour or grayscale differences between a mark and its surrounding background. Let's take a complete look at what the TL50 mark sensor is, its functionality, and its industrial significance. Advanced optical TL50 Contrast Sensors are designed to perform in high-performance colour and grayscale contrast detection applications. The sensors provide affordable solutions without compromising the detection capability, which makes them highly effective in industries related to packaging, food, cosmetics, and pharmaceuticals.

How Does the TL50 Series Mark Sensor Work?

The TL50 Series uses RGB LED emission that automatically selects the optimal light colour depending on the mark it detects and the contrast with its background, whether it be red, green, or blue. In other words, this feature offers the highest possible quality in detection accuracy.

Installation and Setup

Mount the sensor in the application area. Set sensing points by adjusting positions and pressing the teach button to save the desired distances. The sensor comes pre-configured for Normally Open (NO) digital output and positive slope analogue output. Configurations can be changed by holding the teach button for 8 to 12 seconds.

Working Features of TL50 sensor:

  • Contrast Detection: The sensor detects the difference between a mark and its background according to reflectivity. Integrated RGB LEDs automatically adjust to the optimal colour wavelength, which allows for subtle contrasts that no other sensor can provide.
  • Threshold Auto-AdjustmentThis sensor is equipped with two push buttons, MARK and BKGD, respectively, from which it can easily pick up signals from both mark and background. It will automatically set a switching threshold level to differentiate between the two, thus optimizing detection.
  • High Resolution with SpeedContrasting the high resolution offered, the TL50 sensor provides very fast response times down to 33 µs, with a switching frequency of 15 kHz, making it suitable for high-speed applications where even minor time delays can affect production lines.

Key Features of TL50 Series Mark Sensor

  • RGB LED Emission: The sensor provides red, green, and blue LEDs that detect contrast either between colours or shades. It makes the above sensor versatile on a variety of materials, even those with a transparent or glossy finish.
  • Durable Plastic Housing: The sensor head is manufactured in sturdy ABS plastic, therefore rugged and reliable for long-term industrial use. The housing also contains standard dimensions and fixing holes to grant compatibility with existing systems and to easily install it.
  • Easy Sensor Setting: The two push buttons MARK and BKGD make user-friendly the calibration phase of the sensor. This way, the operators can rapidly set the sensor to match the required setting with high precision.
  • Fast Response Time and High Switching Frequency: With a response time of 33 µs and a switching frequency of 15 kHz, the TL50 matches fast-paced production lines with real-time marking or labelling detection.
  • Automation of Light/Dark Selection: It automatically selects if the mark will be lighter or darker than the background to further simplify its operation and maintain accuracy in dynamic environments.

Technical Specifications of the TL50 Series Mark Sensor

  • Supply Voltage: 10…30 Vdc, reverse polarity protection
  • Light Emission: RGB LED (465 nm blue, 520 nm green, 630 nm red)
  • Operating Distance: 9 mm ± 3 mm
  • Spot Dimension: 1.5 x 5 mm distance 9 mm
  • Response Time: 33 µs
  • Switching Frequency: 15 kHz
  • Type of Output: Bipolar PNP and NPN
  • Output Current: 100 mA maximum
  • Saturation Voltage: ≤ 2 V
  • Operating Temperature: -10°C to 55°C.
  • Protection Grade: IP67, against dust and water in heavy conditions.
  • Housing Material: ABS plastic with strength and durability.
  • Lens Material: PMMA plastic; for food preparation industries where the use of glass components should be avoided

Installation and Setup

The TL50 sensor is designed for easy installation and setup. Its M12 connector and easily accessed push buttons make this sensor quick to set up by any user to configure the sensor to a particular application. The sensor standard 9 mm lens projects a 1.5 x 5 mm spot size at focus distance, which is suitable for most mark detection applications. Other focal needs provide the sensor with an 18 mm lens option.

Applications of the TL50 Series Mark Sensor

The TL50 series is ideal for a wide variety of applications in industries needing to make precise mark detections on a wide range of surfaces. Some major applications have been given below:

  • Packaging Industry: TL50 sensor finds broad applications in packaging machines for detection of registration marks in the case of packaging materials like plastic films and printed labels. Thus, it ensures the accurate packaging of the product-cutting or sealing according to the printed marks.
  • Pharmaceutical Industry: This sensor can be applied in the pharmaceutical industry to detect marks on the packaging of medicines to realize proper labels on them and hence correct standards.
  • Cosmetics: This sensor will ensure the detection of product packaging marks, labels, or other visual cues occurring precisely to accommodate smooth packaging operations of cosmetic products.
  • Food Industry: The food industry very often calls for transparent material packaging. TL50 series finds applications in these critical situations by detecting marks on transparent or reflective surfaces.

Features of the TL50 Series Mark Sensor:

  • Automatic Colour Selection: The TL50 sensor uses red, green, and blue LEDs. This feature allows the sensor to automatically choose the optimal colour for the detection of the contrasts between the mark and the background.
  • High Resolution and Speed: The sensor provides high resolution with a response time of 33 microseconds and a switching frequency of 15 kHz, hence it's highly efficient in high-speed industrial uses.
  • Easy Setting using Two Pushbuttons: MARK and BKGD push buttons are fitted on the sensor head so that operators easily set up and fine-tuned threshold to be able to detect marks and backgrounds.
  • ABS Plastic Housing: The robust construction of the sensor is in ABS plastic and compatible with the majority of the existing industrial installations. The IP67 rating provides dust and water resistance.
  • Compact with Flexibility in Installation: The compact dimensions of this sensor, along with several fixing holes and options for standard lenses, allow easy fitting in a system or environment.

Importance of the TL50 Series Mark Sensor:

  • Precision in Mark Detection: The sensor is important for the realization of precision in print registration marks detection, labels, or reference points accurately, especially for high-precision industries.
  • Supports High-Speed Applications: Fast response time and high switching frequency provide its aptness for high-speed industries such as packaging and pharmaceutical production lines.
  • Versatility Across Materials: The sensor can detect marks on various surfaces, including transparent or reflective materials, making it crucial for industries dealing with diverse packaging needs.
  • Cost-effective solution: Excellent detection performance ensured by the sensor enables cost reduction for industry applications needing quality without bursting the bank.
  • Safety and Compliance: The sensor is designed using materials like PMMA plastic lenses to assist the food industry by not using glass components for safety, regulatory reasons, or otherwise.

Benefits of TL50 Series Mark Sensor:

  • Increased Efficiency and Productivity: Due to fast detection and easy settings, it permits faster settings and less downtime; hence, it is very efficient on production lines.
  • Reduced Maintenance and Durability: Strong housing combined with IP67 protection allows for longevity in performance, hence reducing frequent maintenance and replacement of sensors.
  • Detection under Adverse Conditions: The possibility of detecting marks on transparent reflective, or difficult surfaces makes this series perform reliably even under the most adverse industrial conditions.
  • Flexible Installation: Equipped with multiple fixing holes, the sensor compact design opens ways for easy installation into different systems, thus enabling seamless integration without requiring major modification.
  • Greater Cost Economy: Affordable and offering an unbeatable performance ratio, this saves money to industries on operating costs without compromising accuracy or speed in production processes

Why Choose TL50 Sensors?

The Contrast Sensors TL50 bring unparalleled reliability, precision, and ease of integration to many industrial applications. Due to the high technology and small dimensions, these sensors work at very high speeds, thus turning them into perfection for those manufacturers who want to make more efficient their lines of production without any reduction in quality regarding the item manufactured.
