We are Proximity Inductive Sensors Suppliers, Distributors & Importers in Mumbai, India. An inductive proximity sensor is a type of noncontact detector that uses an electromagnetic field to detect the presence of a metal object. The field changes whenever any metal object comes near it, and this sensor sends an electronic signal. Commonly utilized in factories and machines in the process of detection of metallic parts under dirty or hard conditions, dust, oil, and high temperatures, sensors have been reliable, precise, and immensely useful for positioning, counting, and monitoring speed in automated systems.

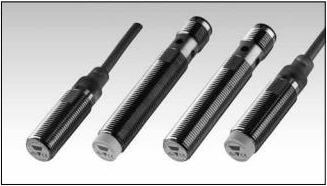

The CARLO GAVAZZI Proximity Inductive Sensors series ICB, M12, features extended range, nickel-plated brass housing types designed to meet industrial standards. These sensors are ideal for applications requiring a high sensing range and come with open collector NPN or PNP transistors. The sensors offer a 4 to 8 mm sensing distance and are available in both flush and non-flush types. They come in short- or long-body versions with a rated operational voltage of 10 to 36 VDC and a DC output of 200 mA, either NPN or PNP.
Extended Range, Nickel-Plated Brass Housing.
Types: ICB, M12
A family of inductive proximity switches in industrial standard nickel-plated brass housings. They can handle applications where a high sensing range is requested.
Output is open-collector NPN or PNP transistors.

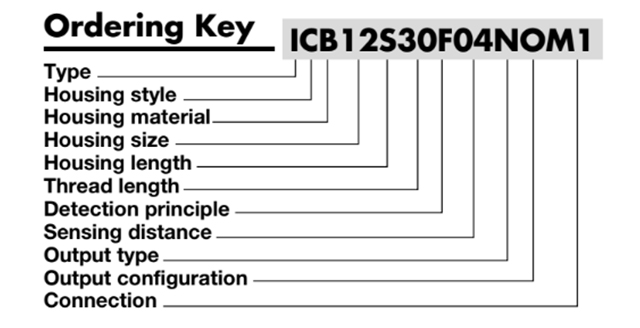

| Connec- tion | Body style | Rated operating distance S | Ordering no. NPN, Normally open | Ordering no. PNP, Normally open | Ordering no. NPN, Normally closed | Ordering no. PNP, Normally closed |
| Cable | Short | 4 mm" | ICB12S30F04NO | ICB12S30F04P0 | ICB12S30F04NC | ICB12S30F04PC |
| Cable | Short | 4 mm" | ICB12S30F04NO | ICB12S30F04P0 | ICB12S30F04NC | ICB12S30F04PC |
| Plug | Short | 4 mm" | ICB12S30F04NOM1 | ICB12S30F04P0M1 | ICB12S30F04NCM1 | ICB12S30F04PCM1 |
| Plug | Short | 8 mm" | ICB12S30N08NOM1 | ICB12S30N08POM1 | ICB12S30N08NCM1 | ICB12S30N08PCM1 |
| Cable | Long | 4 mm" | ICB12L50F04NO | ICB12L50F04P0 | ICB12L50F04NC | ICB12L50F04PC |
| Cable | Long | 8 mm" | ICB12L50N08NO | ICB12L50N08P0 | ICB12L50N08NC | ICB12L50N08PC |
| Plug | Long | 4 mm" | ICB12L50F04NOM1 | ICB12L50F04P0M1 | ICB12L50F04NCM1 | ICB12L50F04PCM1 |
| Plug | Long | 8 mm" | ICB12L50N08NOM1 | ICB12L50N08P0M1 | ICB12L50N08NCM1 | ICB12L50N08PCM1 |

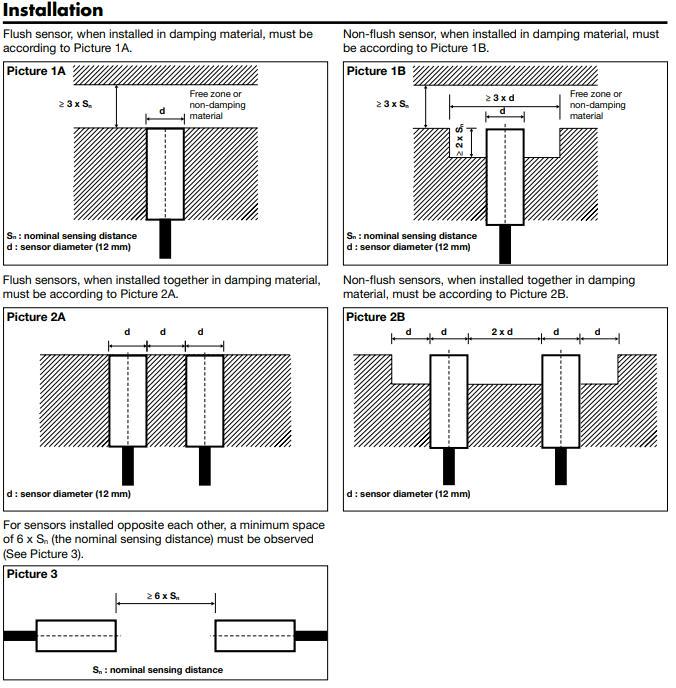

Flush sensors, when installed in damping material, must follow specific spacing and arrangement guidelines as shown in the diagrams (Pictures 1A, 1B, 2A, 2B).

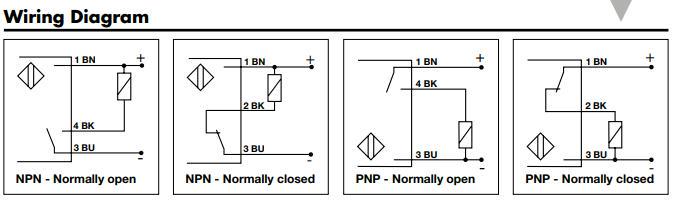

Wiring diagrams for NPN and PNP configurations, normally open and closed, showing connections for 3-wire setups.
The operating distance is affected by the metal type used, with reduction factors provided for materials like steel, chrome nickel, brass, aluminum, and copper.
Available accessory connectors and cables for plug versions, including straight and angled connectors with varying cable lengths.
Proximity inductive sensors play a vital role when working with automation and at several industrial outlets where accurate and reliable detection of metallic objects is required. They find broad usage in conveyor systems, manufacturing processes, robotics, and a lot more. It allows increasing productivity, safety, and accuracy.
